HOIS259613 Wall Mounted Folding Shower Seat Installation Instructions

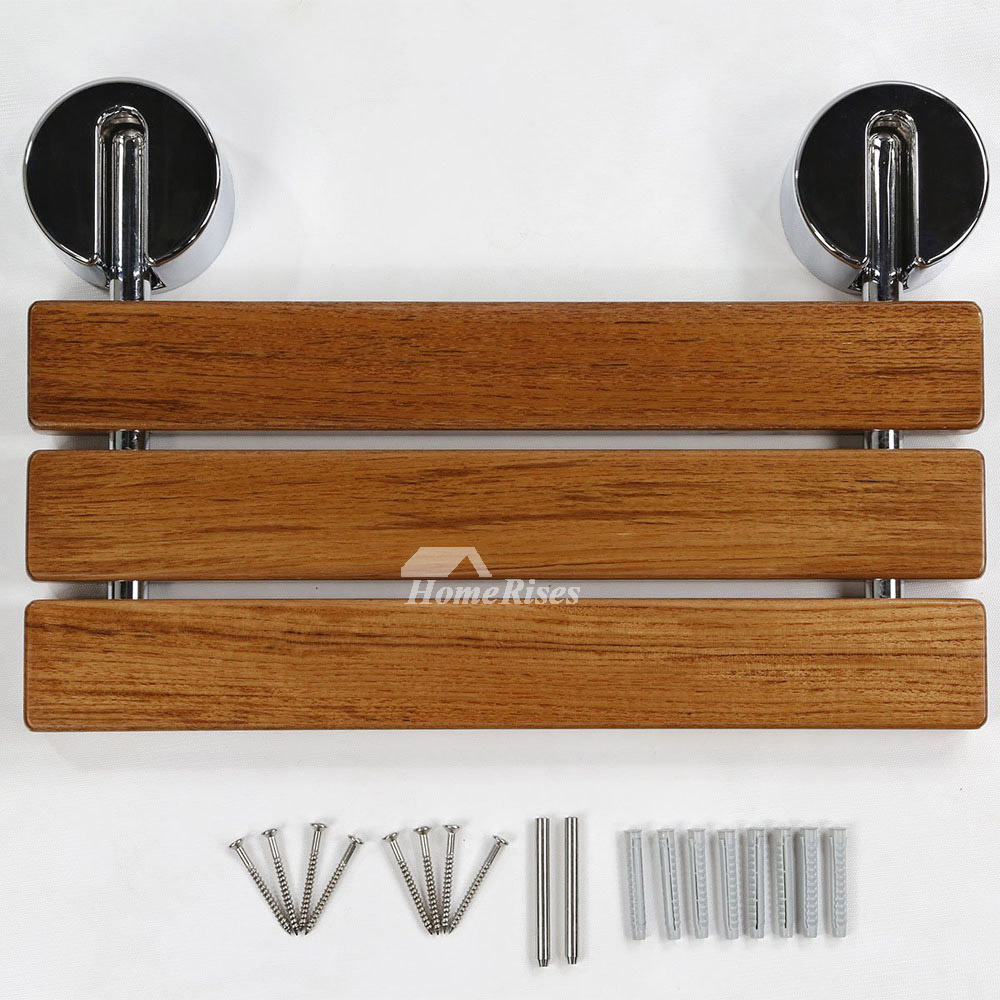

1 - Seat Assembly
6 - Flat Hed Screws
6 - Plastic Wall Plugs
2 - Wall Brackets
2 - Wall Bracket Covers
2 - Mounting Pins
2 - Caps
The mounting brackets must be anchored to a solid structure ensuring a safe and secure installation. As a minimum standard, follow recommended installation below.
INSTALLATION (Refer to illustrations)
Drill 4 or 6 holes, whichever is required for installation using template provided. Secure wall brackets to the wall as shown below.
Place wall bracket covers over brackets and secure seat assembly in place with the mounting pins. After assembly is completed fit caps into pin holes.
1. STUD WALL (mounting wood)
406mm on centre (use template provided] use  flat head screws provided for this installation. Screws should penetrate into the studs a minimum of 35mm.
A 3mm dia masonary drill should be used to drill through tile and board for screw clearance hole.
2. WOOD BATON (mounting wood)
406rnm on centre (use template provided) Wood Baton to be 150mm x 50mm or equivalent and must be an adequate anchor base, secured into studs. Use (6) flat head screws provided for this installation. Screws should penetrate into the Baton a minimum of 35mm. A 3mm dia masonary drill should be used to drill through tile and board for screw clearance hole.
3. MOUNTING (Masonary, brick or block wall)
406mm on centre (use template provided), install  plastic wall plugs provided for this installation. A 8mm diameter masonary dritl should be used for this application.

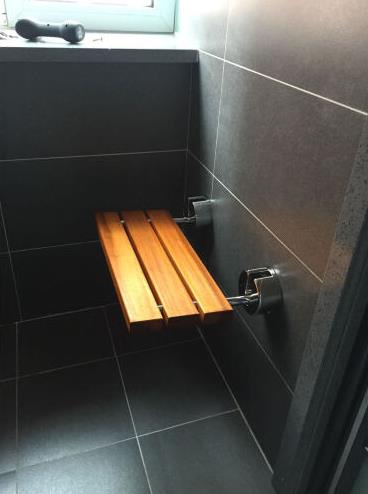

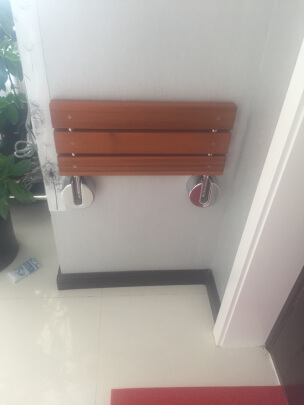

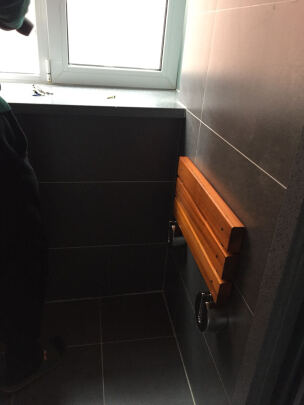

Install Picture - HOIS259613
Shower Seat FAQ
Q: What Is The Material Of Shower Seats?
A: The common shower seat is made of stainless steel, wood, bamboo, ABS plastic, nylon and etc.
Q: Who Would Use Shower Seats?
A: The physical balanced degradation old people, pregnant women, operer, disabled and common people could use the shower seat.
Q: Where Can The Shower Seat Be Used?
A: Bathroom, hallway, public places, park, library, market, hotel, bookstore, railway station, waiting hall and etc.
Q: What Is The Installation Height Of Shower Seats?
A: In general the installation height is from 16 inch to 20 inch, it is around 45-50cm, you can adjust according to the height.
Q: What Is Load Capacity Of Wall Mount Shower Seats?
A: In general it can suffer 136-250kg weight capacity, around 300-550lb. In order to keep safety, we had better not use the single seat for two people.
Q: What Is The Advantage Of Wall Mounted Folding Shower Seats?
A: 1. Save space - when not in use you can fold it, it is beautiful and not occupy the room.
2. Convenient - you don't need to move the seat after finishing installation.
3. Wide varieties - a great variety of styles and colors shower seats for you.
4. Safety and skid resistance - surface has slide resistance and lower the falling risk.
Q: Do You Have Door-To Door Installation Service?
A: I'm sorry, temporarily we don't support door-to-door service, but we could provide you the picture and video course about how to install, please refer to related content from Knowledge.
Q: What Is The Discount For Wholesale?
A: If you need wholesale or have high order amount, please email us about the products and click the “Submit a large order inquiry”, our manager would give you a reasonable discount.
