HOIS260113 Wall Mounted Folding Shower Seat Installation Instructions
HOIS260113 type shower seat is easy to be installed and has heavy load-bearing with novel structure. Please read the specifications before installing, then makes you install more conveniently. Wide range of colors and quality assurance, Let your life more relaxed.
1) This Shower Seat Is Only For Solid Wall. The weight capacity of solid wall would not exceed 150kg, but the shower seat frequency is high, if there is a bit overweight person on your family, you had better equip with shower seat with feet in order to keep long-term safety.
2) Please wipe the water after finishing using, that cares about the shower seats.
3) Wipe with sofa rag in avoid of touching corrosive liquid, and keeps it clean after using.
HOIS260113 Type Shower Seat, Parts List

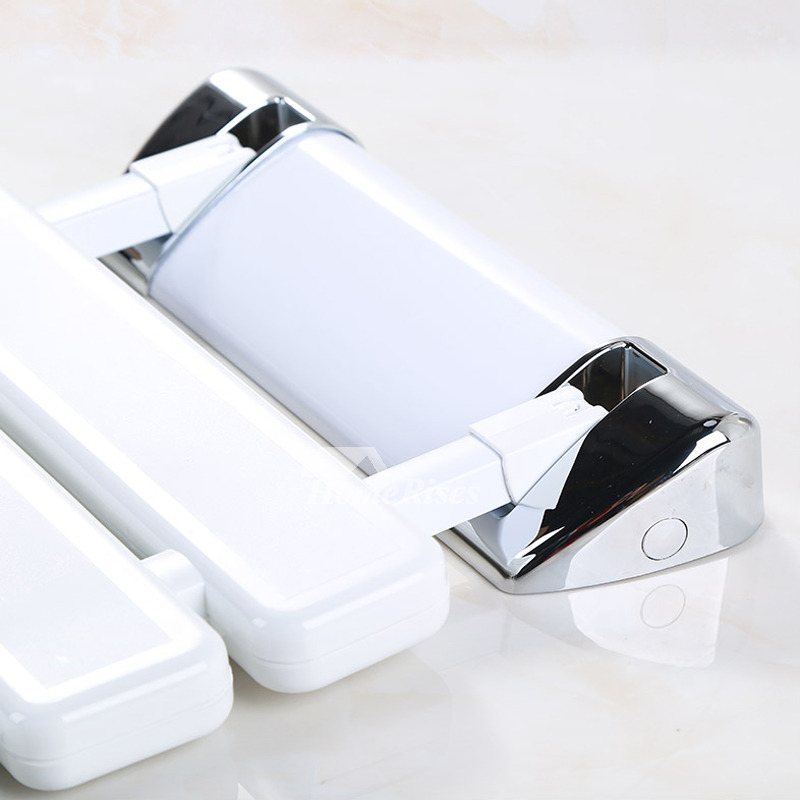

1) Seat Main Body
2) 5 Pcs Of Plastic Expansion Sleeve In 60 Mm Long And 8mm Diameter
3) 5 Pcs Of Long Screw In 60mm Long
4) Installation Panel
5) 2 Pcs Of Internal Check Screw
HOIS260113 Type Shower Seat, Installation Steps
1. Please place the fixed plate (04) on the wall within the flat, the side with three holes upwards and keeps horizontal, it is about 400-500mm distance from bottom to floor, mark with a pencil, then after taking fixed plate down and use the 8mm drill to drill 5 holes in the tag, the hole has 60mm depth, then take the expanding sleeve (02) into the hole.
2. Put the fixed plate (04) away again, and screw the locking screw (03) down.
3. Fasten the seat (01) to the top of fixed plate (04) totally, until the bottom inside reaches the wall, then keep the aluminum base and fixed plate at both ends of surface.
4. Use the provided socket head wrench to screw the 2 hexagon stop screws (05) that is the bottom of seat down in the dimension of 5*8mm.

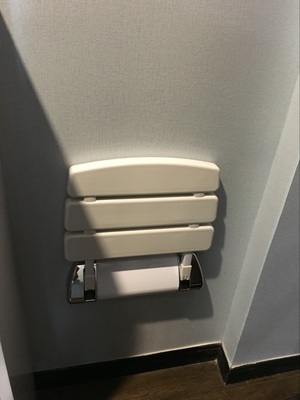

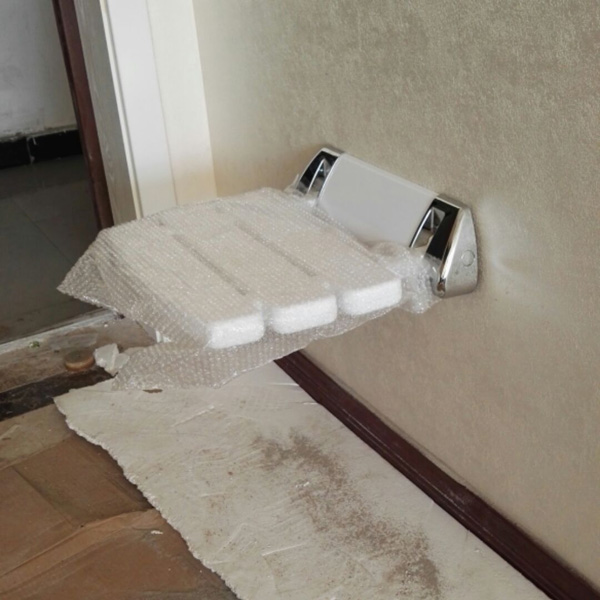

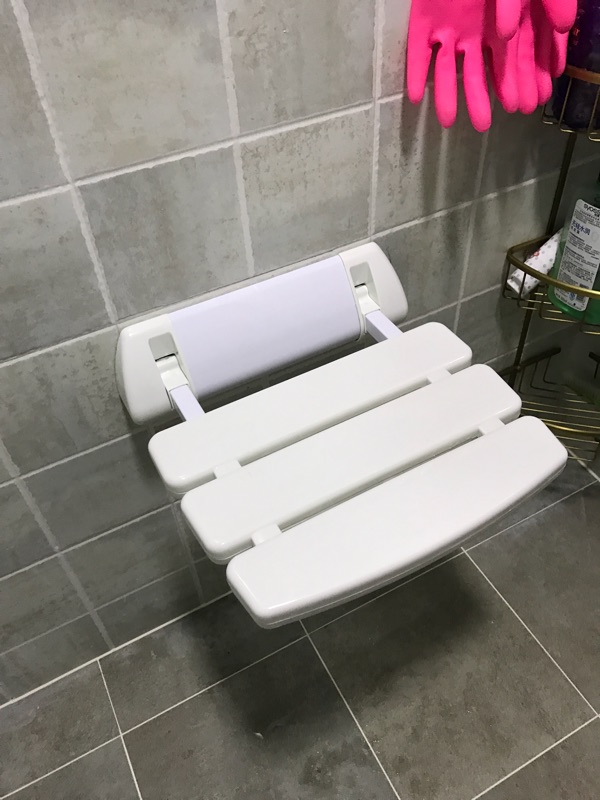

Install Picture - HOIS260113
Shower Seat FAQ
Q: What Is The Material Of Shower Seats?
A: The common shower seat is made of stainless steel, wood, bamboo, ABS plastic, nylon and etc.
Q: Who Would Use Shower Seats?
A: The physical balanced degradation old people, pregnant women, operer, disabled and common people could use the shower seat.
Q: Where Can The Shower Seat Be Used?
A: Bathroom, hallway, public places, park, library, market, hotel, bookstore, railway station, waiting hall and etc.
Q: What Is The Installation Height Of Shower Seats?
A: In general the installation height is from 16 inch to 20 inch, it is around 45-50cm, you can adjust according to the height.
Q: What Is Load Capacity Of Wall Mount Shower Seats?
A: In general it can suffer 136-250kg weight capacity, around 300-550lb. In order to keep safety, we had better not use the single seat for two people.
Q: What Is The Advantage Of Wall Mounted Folding Shower Seats?
A: 1. Save space - when not in use you can fold it, it is beautiful and not occupy the room.
2. Convenient - you don't need to move the seat after finishing installation.
3. Wide varieties - a great variety of styles and colors shower seats for you.
4. Safety and skid resistance - surface has slide resistance and lower the falling risk.
Q: Do You Have Door-To Door Installation Service?
A: I'm sorry, temporarily we don't support door-to-door service, but we could provide you the picture and video course about how to install, please refer to related content from Knowledge.
Q: What Is The Discount For Wholesale?
A: If you need wholesale or have high order amount, please email us about the products and click the “Submit a large order inquiry”, our manager would give you a reasonable discount.
