- Specifications
- Cold And Hot Water SwitchYes
- Faucet Body MaterialBrass
- HoseDelivery with 2 inlet hoses and 2 connecting hoses

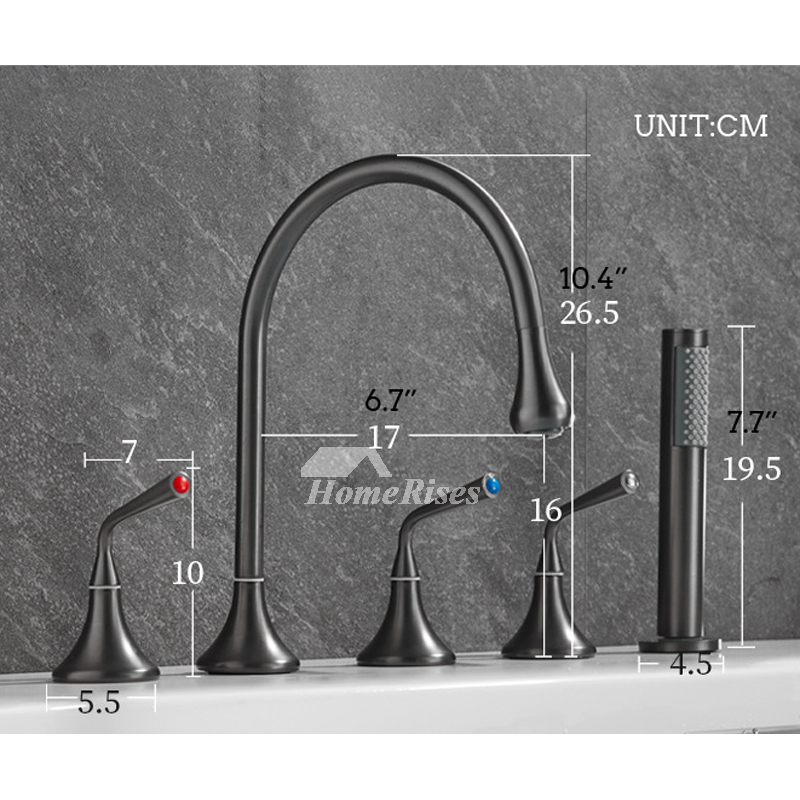

- Height10.2"(26cm)
- ColorGunmetal Grey, Gold, Silver, Black
- FeatureGooseneck, Rotatable
- Installation Holesfive Holes
- StyleLuxury, Modern
- Valve MaterialCeramic
- Suggested Room FitBathroom
- Installation TypeWidespread
- Number Of Handles3 Handle
- FinishBrushed, Chrome, Brushed Brass, Matte Black
*Please check the size before purchasing.
*This product contains a hot & cold water mixing valve, but doesn't include an scalding protection device. If it cannot be used, please don't buy it.
1.you should take out the faucet first, and then check all the fittings to find out that whether they are all in good conditions: 2 rubber gaskets,
1 threaded joint, 1 sleeve piece, and 2 water hoses. Before the installation, please remember to remove dirt from the installation hole and
the water supply pipeline to ensure that there is no debris in the water pipeline. In order to protect the faucet from scratching, you can
install the faucets with soft gloves.
2.you can take out the plastic washer. The washer is used to alleviate the pressure of the metal surface of the faucet and the ceramic basin.
Then you can insert a water inlet pipe into it and screw it.
3.put the thread into the first water hose, and then put second water inlet hose through the threaded joint.
4.in this step, you should screw the second inlet hose into the inlet port. Please pay attention to the correct direction,
and then tighten the threaded joint with force.
5.put the two water hoses through the white mat.
6.you can install the locking nut in this step and fix the faucet.
Warm prompt: when you meet any problems during the process of installation, please contact our customer service, and we will give you a
detailed answer.
7.tighten the sleeve piece.
8.lock the two water inlet pipes and valve interface. Do not use pliers to twist it with force to prevent deformation or break.
Pay attention to the connection of cold and hot water.
Countertop cutout size for faucet installation: 3.4 - 3.8cm (1.35 - 1.5"), subject to the actual size of the faucet.
Q: How to replace/adjust temperature limit?
A: Temperature limit stop type1 - single piece
1.Remove the handle, plate screws and escutcheon plate.
2.Pull the temperature limit stop out of fixture.
3.Rotate the temperature limit stop anticlockwise to lower the maximum temperature, or rotate the stop clockwise to increase the maximum temperature.
4.Push limit stop back to the valve.
5.Check the water temperature, and ensure that water temperature is not over 120°F, if the problem still exists, please go back from step 2 to step 4 in order to lower the maximum temperature.
6.Reinstall the handle, plate screws and escutcheon plate.
Temperature limit stop type 2 - single piece
1.Remove the handle, plate screws and escutcheon plate.
2.Pull the temperature limit stop out of the fixture.
3. Rotate the temperature limit stop anticlockwise to lower the maximum temperature, or rotate the stop clockwise to increase the maximum temperature.
4. Push the limit stop back to the valve.
Q: How to lower the maximum temperature of single handle pressure balanced bathtub faucets?
A: Adjust temperature limit stop
Q: If my single handle bathtub are leaking, how to fix it?
A：At the showerhead
1.Confirm water supply of faucet closed.
2.Replace the valve
At the handle
1.Check the screw nut to confirm it screwed down. If the problem still exists, please turn to step2.
2.Confirm water supply of faucet closed
3.Replace the valve.
Q: How to replace a bathtub spout?
1.Rotate and loosen the fixed screw of spout anticlockwise. (If possible, we can use the proper tool, such as wrench or cross screwdriver)
2.Slip off bathtub spout.
3.Replace new bathtub spout.
4.Reinstall fixed screw until fitting.
IPS bathtub spout
1.Rotate and loose bathtub spout anticlockwise by wrench or other technique.
2.Clean pipe threads and ensure the redundant thread seal tape removed completely.
3.Paint the thread sealant on the pipe thread.
4.Reinstall new bathtub spout.
Q: What tools do I need to install a faucet?
A: Some common tools include:
Basin wrench
Adjustable wrench
Silicone sealant
Channel locks
Screwdriver
Flashlight
Q: When do I need to use thread seal tape?
A: The thread seal tape is only used for kitchen pop-up tail parts and bathtub and shower valves with IPS connections.
